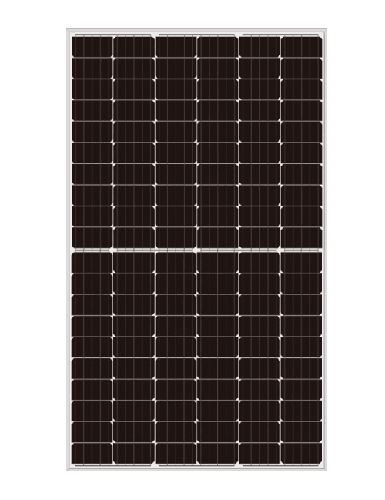

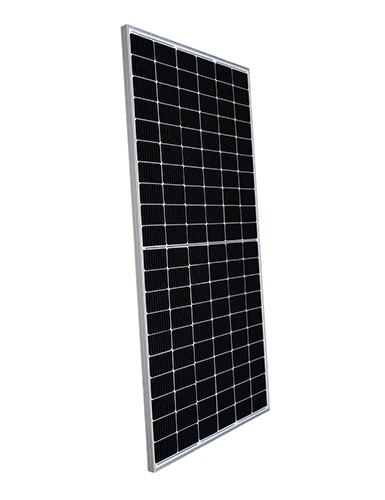

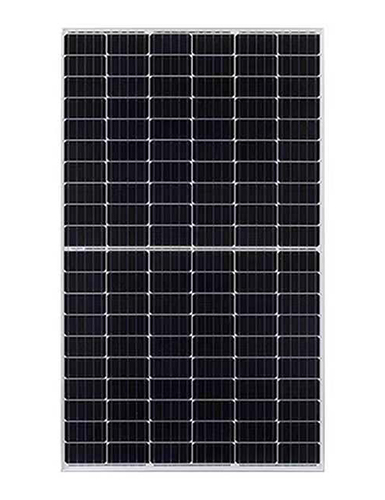

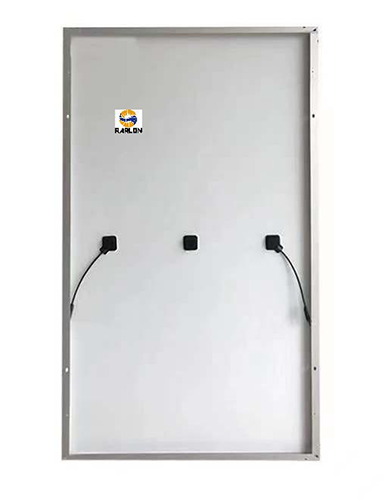

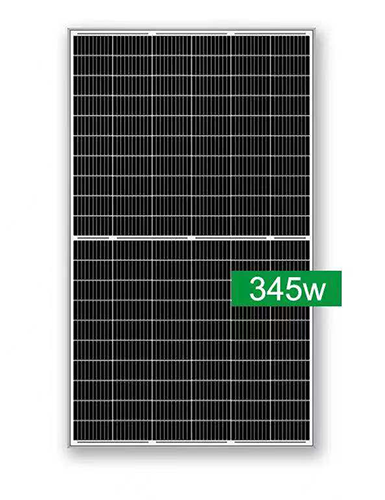

320w to 345w 120 half cell mono solar panel
Solar Cell: | Mono 158.75*78.375mm |
Number of Cells: | 120(6*10+6*10) |
Power Range: | 320w-345w |
Size: | 1684*1002*35mm |
Certificate: | TUV, CE, ISO |
Warranty: | 25 Years |
Lead Time: | 10 days |
Payment: | TT, L/C, Western Union |
Port: | Ningbo or Shanghai |
Brand: | Rarlon |
Others: | OEM & ODM |
Package: | Plywood pallet |
300pcs/20gp | |
800pcs/40hq |
Model |
RL320HM-120 |
RL325HM-120 |
RL330HM-120 |
RL335HM-120 |
RL340HM-120 |
RL345HM-120 |
Maximum Power at STC (Pmax) |
320W |
325W |
330W |
335W |
340W |
345W |
Optimum Operating Voltage (Vmp) |
33.64V |
33.82V |
33.98V |
34.16V |
34.22V |
34.28V |
Optimum Operating Current (Imp) |
9.513A |
9.610A |
9.712A |
9.807A |
9.936A |
10.065A |
Open-Circuit Voltage(Voc) |
39.86V |
40.03V |
40.25V |
40.43V |
40.62V |
40.81V |
Short-Circuit Current (Isc) |
10.359A |
10.463A |
10.577A |
10.692A |
10.870A |
10.965A |
Solar Module Efficiency (%) |
18.94 |
19.23 |
19.53 |
19.82 |
20.12 |
20.45 |
Operating Temperature |
-40℃ to 85℃ |
|||||
Maximum System Voltage |
DC1500V |
|||||
Maximum Series Fuse Rating |
15A |
|||||
Power Tolerance |
0~3% |
|||||
STC: Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |

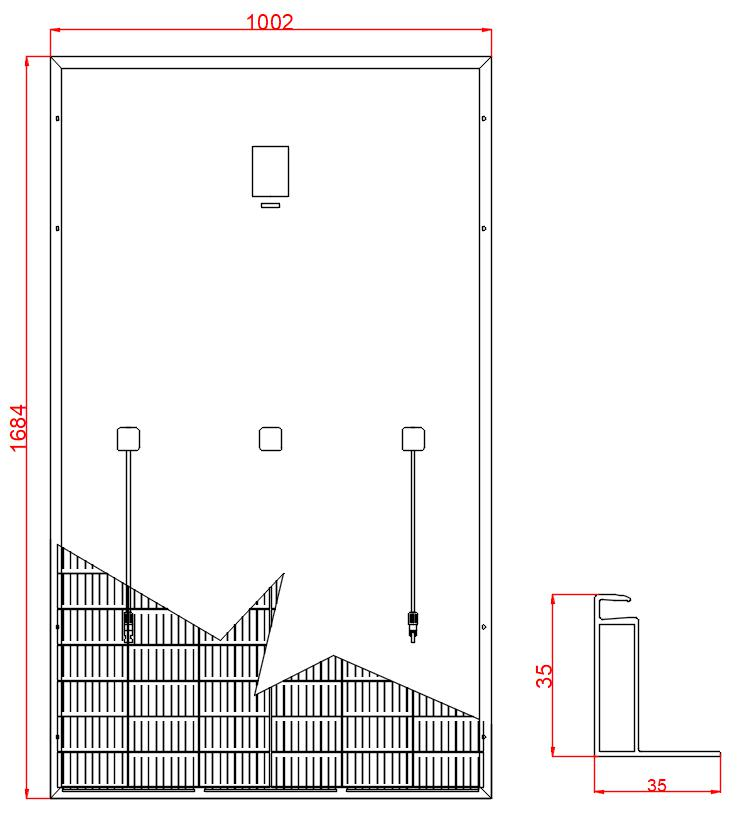

Engineer Drawing
