166mm poly panel 425wp-445wp
| Solar Cell: | PERC Poly 166*83mm |
| Number of Cells: | 144(6*12+6*12) |
| Power Range: | 425W-445W |
| Size: | 2263*1038*35mm |
| Certificate: | TUV, CE, ISO |
| Warranty: | 25 Years |
| Lead Time: | 10 days |
| Payment: | TT, L/C, Western Union |
| Port: | Ningbo or Shanghai |
| Brand: | Rarlon |
| Others: | OEM & ODM |
| Package: | Plywood pallet 31pcs/plt |
| 280pcs/20gp | |
| 660pcs/40gp |
|
Model |
RL425HP |
RL430HP |
RL435HP |
RL440HP |
RL445HP |
|
Maximum Power at STC (Pmax) |
430W |
435W |
440W |
450W |
460W |
|
Optimum Operating Voltage (Vmp) |
41.90V |
42.20V |
42.50V |
42.80V |
43.10V |
|
Optimum Operating Current (Imp) |
10.15A |
10.19A |
10.24A |
10.29A |
10.33A |
|
Open-Circuit Voltage(Voc) |
50.40V |
50.70V |
51.00V |
51.30V |
51.60V |
|
Short-Circuit Current (Isc) |
10.74A |
10.79A |
10.84A |
10.89A |
10.94A |
|
Solar Module Efficiency (%) |
18.09 |
18.31 |
18.52 |
18.73 |
18.94 |
|
Operating Temperature |
-40℃ to 85℃ |
||||
|
Maximum System Voltage |
DC1500V |
||||
|
Maximum Series Fuse Rating |
20A |
||||
|
Power Tolerance |
0~3% |
||||
|
STC: Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |
|||||

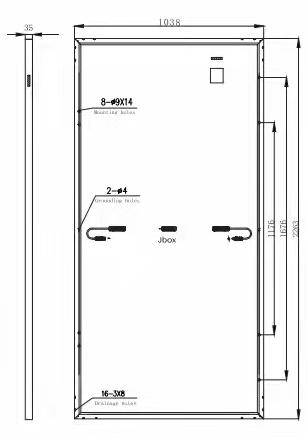

Engineer Drawing
