132cells 210mm mono module 645wp 650wp 660wp 670wp
| Solar Cell: | PERC Mono 210*105mm |
| Number of Cells: | 132(6*11+6*11) |
| Power Range: | 645w-670w |
| Size: | 2384*1303*35mm |
| Certificate: | TUV, CE, ISO |
| Warranty: | 25 Years |
| Lead Time: | 10 days |
| Payment: | TT, L/C, Western Union |
| Port: | Ningbo or Shanghai |
| Brand: | Rarlon |
| Others: | OEM & ODM |
| Package: | Plywood pallet 31pcs/plt |
| 558pcs/40gp |
|
Model |
RL645HM |
RL650HM |
RL655HM |
RL660HM |
RL665HM |
RL670HM |
|
Maximum Power at STC (Pmax) |
645W |
650W |
655W |
660W |
665W |
670W |
|
Optimum Operating Voltage (Vmp) |
37.58V |
37.76V |
37.94V |
38.12V |
38.30V |
38.48V |
|
Optimum Operating Current (Imp) |
17.17A |
17.22A |
17.27A |
17.32A |
17.37A |
17.42A |
|
Open-Circuit Voltage(Voc) |
45.15V |
45.35V |
45.55V |
45.75V |
45.95V |
46.15V |
|
Short-Circuit Current (Isc) |
18.18A |
18.23A |
18.28A |
18.33A |
18.38A |
18.43A |
|
Solar Module Efficiency (%) |
20.8 |
20.9 |
21.1 |
21.2 |
21.4 |
21.6 |
|
Operating Temperature |
-40℃ to 85℃ |
|||||
|
Maximum System Voltage |
DC1500V
|
|||||
|
Maximum Series Fuse Rating |
30A |
|||||
|
Power Tolerance |
0~3% |
|||||
|
STC: Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |
||||||

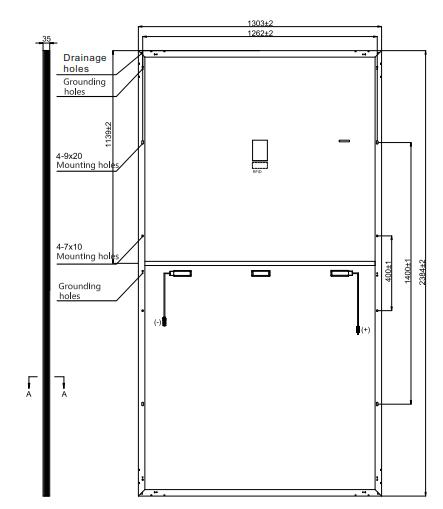

Engineer Drawing
