580w 590w 600w 210mm mono module
| Solar Cell: | PERC Mono 210*105mm |
| Number of Cells: | 120(6*10+6*10) |
| Power Range: | 580w-605w |
| Size: | 2172*1303*35mm |
| Certificate: | TUV, CE, ISO |
| Warranty: | 25 Years |
| Lead Time: | 10 days |
| Payment: | TT, L/C, Western Union |
| Port: | Ningbo or Shanghai |
| Brand: | Rarlon |
| Others: | OEM & ODM |
| Package: | Plywood pallet 31pcs/plt |
| 558pcs/40gp |
|
Model |
RL580HM |
RL585HM |
RL590HM |
RL595HM |
RL600HM |
RL605HM |
|
Maximum Power at STC (Pmax) |
580W |
585W |
590W |
595W |
600W |
605W |
|
Optimum Operating Voltage (Vmp) |
33.94V |
34.12V |
34.32V |
34.50V |
34.70V |
34.88V |
|
Optimum Operating Current (Imp) |
17.10A |
17.15A |
17.20A |
17.25A |
17.30A |
17.35A |
|
Open-Circuit Voltage(Voc) |
40.80V |
41.00V |
41.20V |
41.40V |
41.60V |
41.80V |
|
Short-Circuit Current (Isc) |
18.11A |
18.16A |
18.21A |
18.26A |
18.32A |
18.37A |
|
Solar Module Efficiency (%) |
20.5 |
20.7 |
20.8 |
21.0 |
21.2 |
21.4 |
|
Operating Temperature |
-40℃ to 85℃ |
|||||
|
Maximum System Voltage |
DC1500V
|
|||||
|
Maximum Series Fuse Rating |
25A |
|||||
|
Power Tolerance |
0~3% |
|||||
|
STC: Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |
||||||

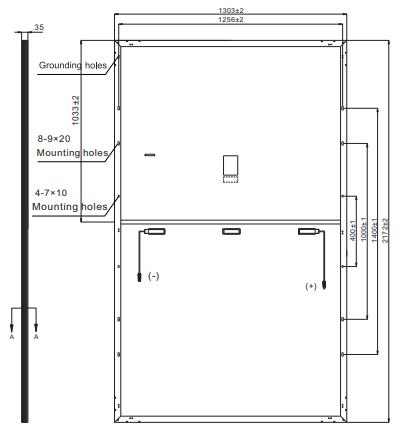

Engineer Drawing
