390w 400w 405w black frame black backsheet mono with 108cells 182mm
| Solar Cell: | PERC Mono 182*91mm |
| Number of Cells: | 108(6*9+6*9) |
| Power Range: | 390W-405W |
| Size: | 1722*1134*35mm |
| Certificate: | TUV, CE, ISO |
| Warranty: | 25 Years |
| Lead Time: | 10 days |
| Payment: | TT, L/C, Western Union |
| Port: | Ningbo or Shanghai |
| Brand: | Rarlon |
| Others: | OEM & ODM |
| Package: | Plywood pallet |
| 300pcs/20gp | |
| 800pcs/40hq |
Marks:Black frame, Black backsheet
|
Model |
RL390HM-108B |
RL395HM-108B |
RL400HM-108B |
RL405HM-108B |
|
Maximum Power at STC (Pmax) |
390W |
395W |
400W |
405W |
|
Optimum Operating Voltage (Vmp) |
30.8V |
31.0V |
31.2V |
31.4V |
|
Optimum Operating Current (Imp) |
12.67A |
12.75A |
12.83A |
12.90A |
|
Open-Circuit Voltage(Voc) |
36.7V |
36.9V |
37.1V |
37.3V |
|
Short-Circuit Current (Isc) |
13.56A |
13.65A |
13.73A |
13.81A |
|
Solar Module Efficiency (%) |
19.9 |
20.2 |
20.5 |
20.7 |
|
Operating Temperature |
-40℃ to 85℃ |
|||
|
Maximum System Voltage |
DC1500V |
|||
|
Maximum Series Fuse Rating |
25A |
|||
|
Power Tolerance |
0~3% |
|||
|
STC: Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |
||||

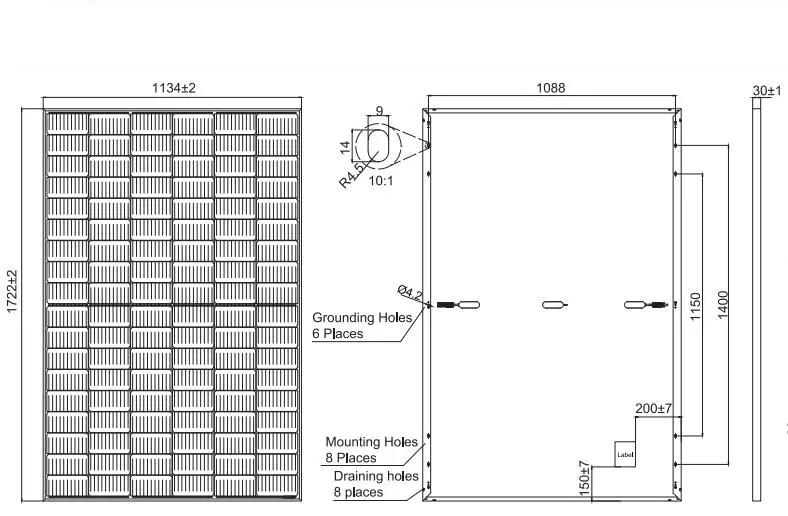

Engineer Drawing
