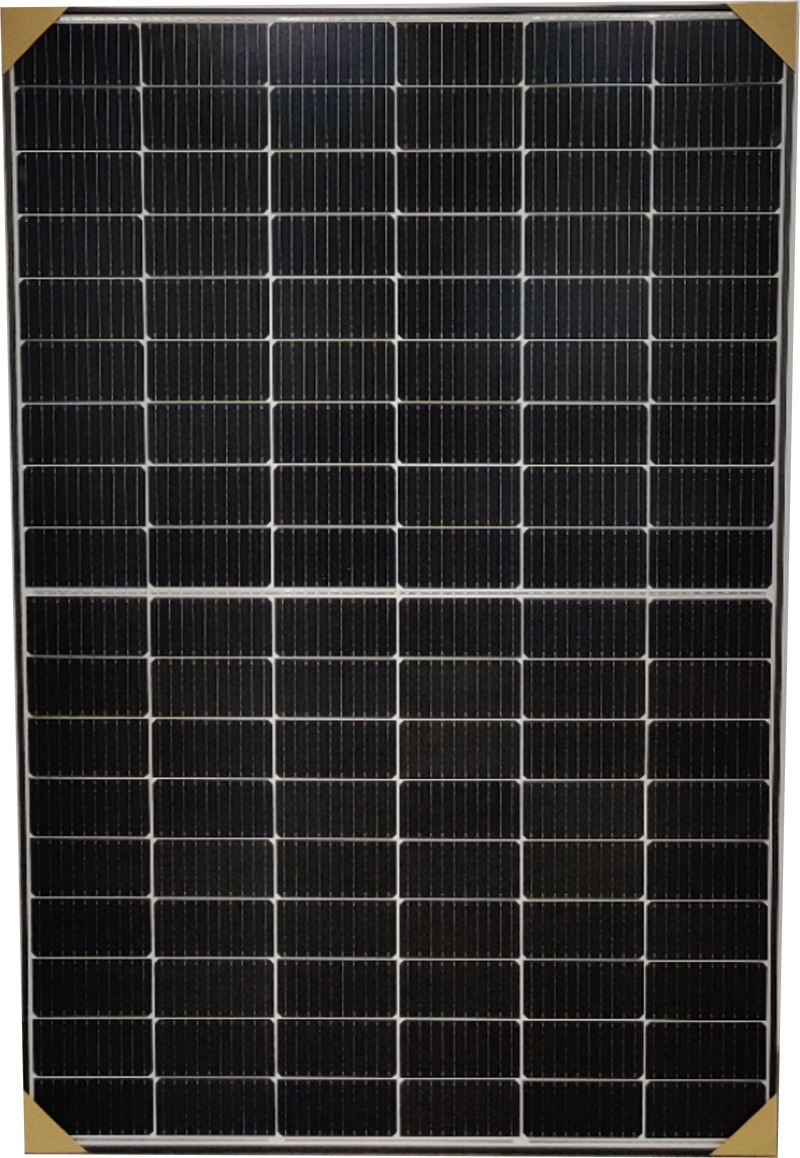

390w 400w 405w 410w mono with 108 half cell 182mm
| Solar Cell: | PERC Mono 182*91mm |
| Number of Cells: | 108(6*9+6*9) |
| Power Range: | 390W-410W |
| Size: | 1722*1134*35mm |
| Certificate: | TUV, CE, ISO |
| Warranty: | 25 Years |
| Lead Time: | 10 days |
| Payment: | TT, L/C, Western Union |
| Port: | Ningbo or Shanghai |
| Brand: | Rarlon |
| Others: | OEM & ODM |
| Package: | Plywood pallet |
| 300pcs/20gp | |
| 800pcs/40hq |
|
Model |
RL390HM-108 |
RL395HM-108 |
RL400HM-108 |
RL405HM-108 |
RL410HM-108 |
|
Maximum Power at STC (Pmax) |
390W |
395W |
400W |
405W |
410W |
|
Optimum Operating Voltage (Vmp) |
30.76V |
30.98V |
31.18V |
31.38V |
31.59V |
|
Optimum Operating Current (Imp) |
12.69A |
12.76A |
12.83A |
12.91A |
12.98A |
|
Open-Circuit Voltage(Voc) |
36.62V |
36.84V |
37.04V |
37.24V |
37.45V |
|
Short-Circuit Current (Isc) |
13.59A |
13.66A |
13.73A |
13.81A |
13.88A |
|
Solar Module Efficiency (%) |
19.9 |
20.2 |
20.5 |
20.7 |
21.0 |
|
Operating Temperature |
-40℃ to 85℃ |
||||
|
Maximum System Voltage |
DC1500V |
||||
|
Maximum Series Fuse Rating |
20A |
||||
|
Power Tolerance |
0~3% |
||||
|
STC: Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |
|||||

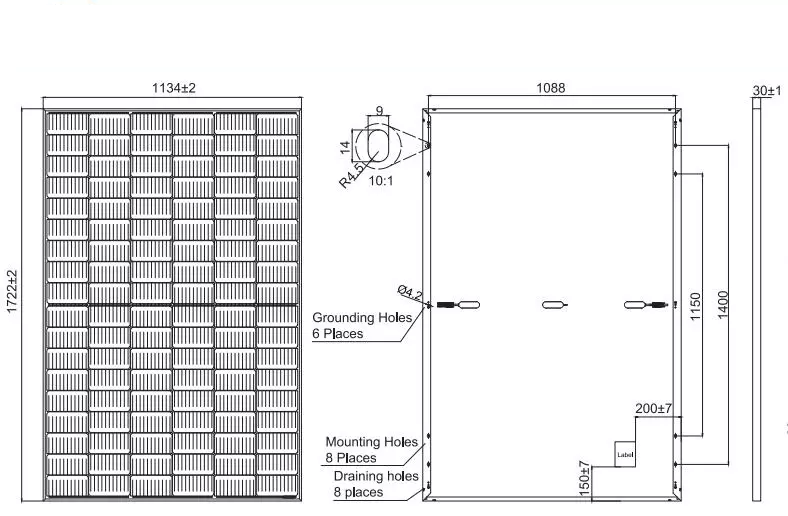

Engineer Drawing
